Laser Engraving Settings Made Simple: Power, Speed & Passes Demystified

Welcome to the luminous world of laser settings mastery, where the difference between a beautiful engraving and a charred disaster often comes down to just a few percentage points and some speed adjustments. If you've ever stared at your laser's control panel feeling like you're trying to decode alien technology, you're not alone. Those power and speed dials might as well be the controls to a spaceship when you're just trying to engrave your name on a piece of wood without turning it into kindling.

The Reality Check

Here's the truth: laser engraving settings aren't rocket science, but they're definitely more complex than making toast. The good news? Once you understand how power, speed, and passes work together, you'll have the confidence to tackle any material that crosses your laser bed. By the end of this guide, you'll be dialing in settings like a seasoned pro instead of playing the dangerous game of "let's see what happens if I crank everything to 100%."

The Holy Trinity of Laser Settings

At the heart of every successful laser engraving lies the delicate dance between three fundamental parameters: power, speed, and passes. Think of these as the ingredients in your grandmother's secret recipe – get the proportions right, and you'll create something beautiful. Get them wrong, and you might end up calling the fire department.

Power

Power determines how much energy your laser delivers to the material. It's like the volume knob on your favorite song – too low and nobody hears it, too high and the neighbors start complaining (or in this case, your material starts burning). Most lasers express power as a percentage, typically ranging from 1% to 100% of your laser's maximum output. A 50-watt CO2 laser running at 50% power is delivering 25 watts to your material.

Speed

Speed controls how fast your laser head moves across the material. This is where things get interesting – speed directly affects how long the laser beam dwells on any given spot. Slower speeds mean more heat input per area, which translates to deeper engraving or cutting. Faster speeds reduce heat buildup, perfect for delicate materials or when you want lighter engraving.

Passes

Passes refer to how many times the laser traces over the same path. Sometimes it's better to make multiple light passes rather than one aggressive pass. It's like painting a fence – you could try to cover everything in one thick coat, but multiple thinner coats often give better results with less mess.

The Magic Formula

The magic happens when these three parameters work in harmony. Double your speed, and you typically need to double your power to achieve the same effect. But here's where it gets nuanced – this relationship isn't infinitely scalable due to thermal dynamics and material properties. A piece of basswood responds differently than a sheet of acrylic, and understanding these differences is what separates successful laser operators from frustrated beginners.

Material personalities and their preferred settings

Every material has its own personality when it comes to laser settings, much like people have their coffee preferences. Some materials are agreeable and forgiving, while others are temperamental divas that demand precise attention to detail.

Wood: The Friendly Neighbor

Wood is generally the friendly neighbor of laser materials. Softwoods like basswood and pine are forgiving and work well with moderate power settings. Start with 20-30% power at 200-300 mm/s for engraving on most softwoods. Basswood, the darling of the laser engraving world, typically performs beautifully at 15% power and 150 mm/s speed. Hardwoods like maple, cherry, and walnut require more energy – bump up to 30-40% power while maintaining similar speeds.

Pro Tip: Grain Direction Matters

Grain direction matters more than you might think. Always engrave parallel to the wood grain when possible. Perpendicular engraving creates uneven burning because you're alternating between hard and soft wood fibers. Resinous woods like pine and cedar produce more smoke and charring, so reduce your speed by 10-20% to allow better heat dissipation.

Acrylic: The Perfectionist

Acrylic is the perfectionist of the laser world. It demands precision but rewards you with crisp, clean results. Cast acrylic (the good stuff) creates that beautiful frosted white appearance when engraved, while extruded acrylic produces clear engraving. For cast acrylic, start with 25% power at 350 mm/min speed. Always engrave from bottom-up to reduce debris issues, and never skip the masking tape – acrylic shows every smoke stain.

Leather: Requires a Gentle Touch

Leather requires a gentle touch and careful attention. Natural leather types vary significantly in their laser response. Cowhide can handle higher power settings, while lambskin requires delicate treatment. Start conservatively with 10-20% power and test thoroughly.

Pro Tip: Moisture Control

Here's a pro tip: slightly moisten leather before engraving to reduce smoke production, but never soak it.

Metal: Fiber Laser Territory

Metal engraving is where fiber lasers shine, but if you're working with a CO2 laser, stick to anodized aluminum or use marking compounds. Fiber laser settings for stainless steel typically start around 30-50% power at 1000 mm/min for marking, while aluminum requires 40-60% power at 800 mm/min.

The testing game that saves your materials

Here's where most beginners go wrong: they skip the testing phase and jump straight to their precious project material. It's like trying to parallel park a moving truck when you've only driven a compact car – technically possible, but probably not going to end well.

Create Test Grids Like Your Success Depends On It

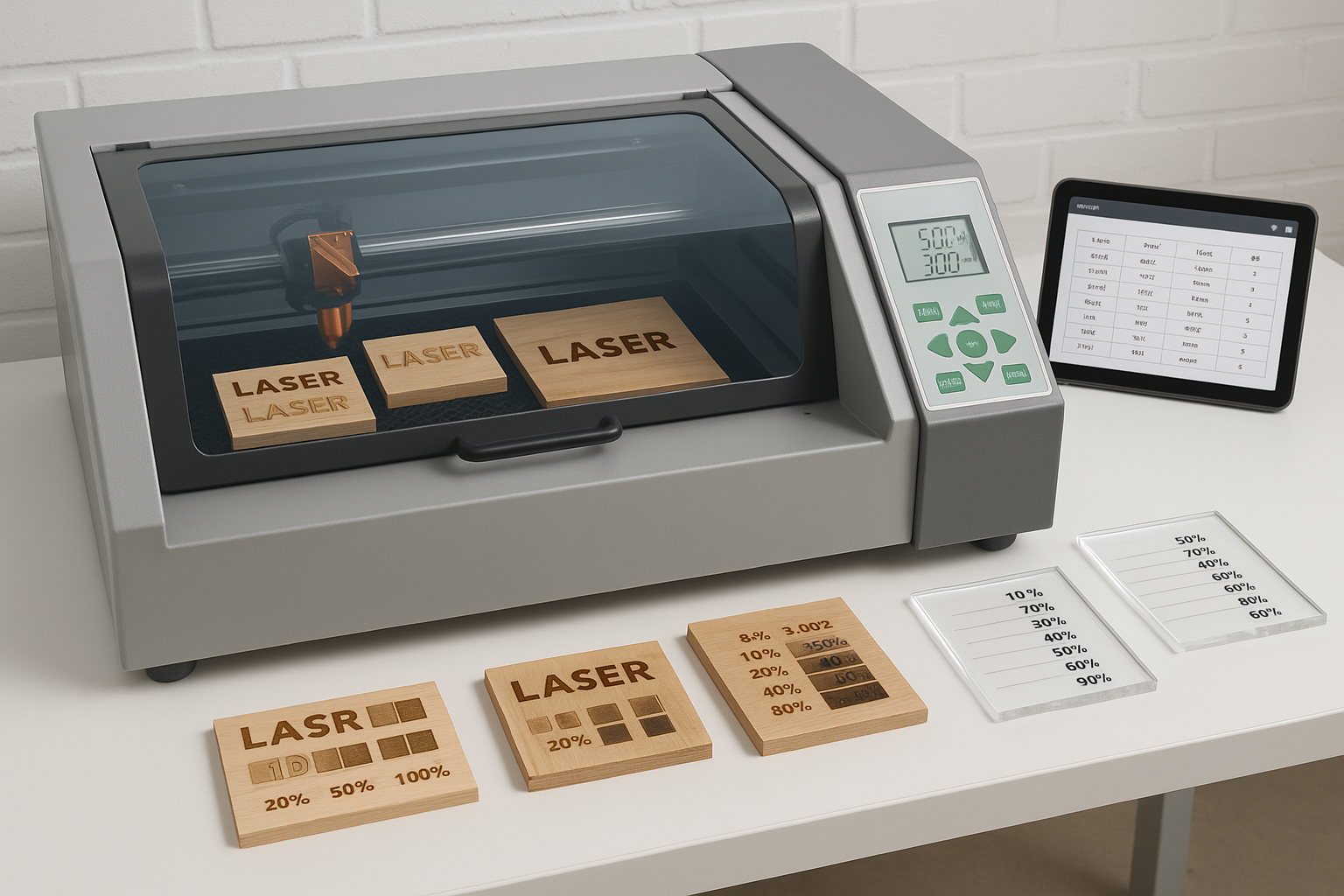

Create test grids like your success depends on it – because it does. Design a matrix with speed on one axis (typically 100, 200, 400 mm/min) and power on the other (starting at 10% and increasing in 10% increments). Use scrap pieces identical to your project material – that leftover piece from last week's project won't necessarily behave the same as fresh material from a different batch.

The systematic approach saves time and materials. Start conservative with low power and high speed, then gradually increase power. Watch for that sweet spot where you achieve the desired result without burning or incomplete engraving. Document everything – and by everything, I mean the material brand, thickness, environmental conditions, and exact settings that worked.

Never Trust Your Memory

Never trust your memory when it comes to settings. Create a laser journal or spreadsheet tracking your successful combinations. Include photos of your test results under consistent lighting. Future you will thank present you when you need to replicate those perfect settings six months from now.

For focus calibration, use the ramp test method: lower your bed 2 inches below the nozzle, place test material, set laser to 20% power and 100 mm/s speed, then pulse while moving right to create an extended hourglass pattern. The thinnest point shows your optimal focal distance.

When things go wrong and how to fix them

Even experienced laser operators encounter problems, but knowing how to diagnose and solve issues quickly separates the pros from the perpetually frustrated. Most laser engraving problems fall into predictable categories with equally predictable solutions.

Uneven Engraving Depth

Uneven engraving depth typically signals focus or mechanical issues. Check that your material lies flat against the bed – even slight warping creates focus variations across the surface. Inspect your belts for proper tension and your rails for cleanliness. Loose belts create backlash that manifests as inconsistent engraving, while dirty rails cause stuttering motion.

Burn Marks and Excessive Charring

Burn marks and excessive charring usually indicate too much heat input. Reduce power by 10-20% or increase speed to minimize heat buildup. For materials prone to charring, like resinous woods, use masking tape and ensure your air assist system functions properly. Multiple light passes often produce cleaner results than single aggressive passes.

Incomplete Cuts or Shallow Engraving

Incomplete cuts or shallow engraving point to insufficient energy delivery. Before cranking up the power, verify your focus alignment and clean your optics. Even minor lens contamination significantly reduces power output. If power and focus are correct, slow down your speed to increase dwell time per area.

Inconsistent Results Across the Laser Bed

Inconsistent results across the laser bed suggest calibration issues. Ensure your work surface is perfectly level and your laser alignment is accurate. Environmental factors matter too – temperature swings and vibrations affect precision. Control what you can and account for what you can't.

Advanced techniques that make the difference

Once you've mastered basic settings, several advanced techniques can elevate your laser work from good to professional quality. These aren't complicated concepts, but they require understanding the physics behind laser-material interaction.

Multiple Passes Beat Single Aggressive Passes

Multiple passes often beat single aggressive passes for both quality and safety. Instead of cutting 3mm plywood in one pass at 90% power, try three passes at 35% power. You'll get cleaner edges with less charring and reduced fire risk. The cooling time between passes prevents heat buildup that causes warping and discoloration.

Dynamic power control adjusts laser output based on travel speed. When your laser slows down for curves or direction changes, dynamic power reduces output proportionally. This prevents over-burning at corners and creates more consistent results across complex designs.

Frequency settings matter more than many realize, especially for acrylic work. Cast acrylic works best at 10,000-20,000 Hz, while extruded acrylic requires maximum 5,000 Hz. Wrong frequency settings create rough edges and poor finish quality.

Air assist isn't optional for quality work. Proper air flow removes combustible particles, cools the cut zone, and improves edge quality. Position your air nozzle close to the material surface but avoid turbulence that scatters debris.

Creating your personal settings library

Professional laser operators don't rely on memory or guesswork – they build comprehensive parameter libraries that ensure consistent results project after project. Your settings database becomes one of your most valuable assets as you develop experience with different materials and applications.

Organization is Key

Organize your settings by material categories, not individual projects. Create main categories for woods, acrylics, metals, and specialty materials, then subdivide by thickness and specific types. Include environmental conditions during testing – temperature and humidity affect material behavior more than most people realize.

Document more than just power and speed. Record DPI settings, number of passes, focus distance, air assist pressure, and any special preparation steps. Include photos of both test results and finished projects under consistent lighting conditions.

Version control matters when you're building a professional operation. As your laser ages or you clean/replace components, settings may require adjustment. Track when settings were last verified and note any equipment changes that might affect performance.

Share your knowledge responsibly. If you're working with others, establish protocols for validating shared settings before use. What works perfectly on your laser might need adjustment on equipment with different characteristics or wear patterns.

Safety wisdom that keeps everyone happy

Let's address the elephant in the room – laser safety isn't about being paranoid, it's about being smart enough to enjoy your hobby for years to come. The good news is that most safety practices become second nature once you understand why they matter.

Essential Safety Practices

• Eye protection isn't negotiable. Different laser wavelengths require specific safety glasses – blue/green glasses for diode lasers, gray glasses for CO2 lasers, and light green glasses for fiber lasers. Generic safety glasses won't protect you from laser-specific wavelengths.
• Never leave your laser unattended during operation, especially when testing new settings. Materials can ignite with minimal warning, and what starts as a small flame can quickly become a serious fire. Keep an appropriate fire extinguisher within reach – one rated for electrical fires, not just ordinary combustibles.
• Ventilation protects your health and your results. All laser operations require external exhaust – minimum 100 CFM per 100 watts of laser power. Proper ventilation removes dangerous fumes and improves engraving quality by clearing smoke from the beam path.
• Know your materials intimately. Never laser PVC, vinyl, or chrome-tanned leather – these materials produce dangerous gases. When in doubt, research the material safety data sheet or contact the manufacturer.

Putting it all together for consistent success

Mastering laser engraving settings is like learning to cook – you start with recipes (established settings), but eventually develop the intuition to adjust for different ingredients (materials) and conditions. The key is building that experience systematically rather than through expensive trial and error.

The 80/20 Rule

Start every new material with conservative test settings. Use the 80/20 rule – spend 80% of your time testing and documenting, 20% on actual production. This ratio reverses as you build your settings library, but early investment in testing pays dividends for years.

Remember that consistency trumps perfection. It's better to have settings that produce good results reliably than perfect settings that only work under ideal conditions. Build in safety margins – if your testing shows optimal results at 35% power, consider using 32% for production work.

Environmental control makes a bigger difference than most people realize. Maintain stable temperature and humidity when possible. Allow materials to acclimate to your workshop conditions before processing. Account for seasonal variations in material behavior – wood especially changes with humidity levels.

Document your learning journey. Keep notes about what didn't work and why – failed experiments often provide more valuable insights than successful ones. Understanding why certain parameter combinations fail helps you avoid similar problems with new materials.

Your settings mastery starts now

The path from laser settings confusion to confident mastery isn't complicated, but it does require systematic approach and patience. Every expert started exactly where you are now – staring at those power and speed controls wondering how to translate theory into beautiful results.

Start with the basics: understand your laser type and its capabilities, invest in proper safety equipment, and commit to systematic testing before tackling important projects. Build your settings library one material at a time, documenting everything meticulously.

Most importantly, embrace the learning process. Every mistake teaches you something valuable about laser-material interaction. Every successful project builds confidence for tackling more challenging work. The laser engraving community is remarkably supportive – don't hesitate to share your experiences and learn from others.

Final Words of Wisdom

Your laser is waiting for you to unlock its potential. With the knowledge in this guide and commitment to systematic testing and documentation, you'll soon find yourself confidently dialing in settings for any material that crosses your laser bed. Because while setting things on fire with your mind might take too long, setting things on fire with precisely controlled laser parameters? That's something you can master starting today.

Happy lasering, and remember – when in doubt, test it out. Your future self (and your materials budget) will thank you for the patience and precision you invest in mastering these fundamental skills.
